AXOR Starck. The collection that revolutionized bathroom design. Its archetypal form, inspired by the traditional well pump, tells a story of beauty in simplicity. By reducing the faucet to pure essence, just two pipes and a joystick control, it focuses our attention on water itself. The luxury of it. The pleasure of it. The necessity of it. A collection as relevant today as it was at its launch more than 25 years ago, AXOR Starck may truly be described as The Original.

•consists of: single lever basin mixer, waste set
•ComfortZone 90
•projection 112 mm
•spray type: normal spray
•maximum flow rate at 3 bar: 5 l/min
•joystick ceramic cartridge
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•non-closing waste set

Art. no. 10117330

Inspired by life in the modern metropolis, where space is often at a premium, AXOR Citterio M defines an urban aesthetic of elegance and sophistication. Created with more confined spaces in mind, the collection is characterized by reduced and slender forms, delicately tapered and contoured. With its quiet presence and understated beauty, it transforms the bathroom into a retreat from the commotion of city life, a place in which to reinvigorate both mind and body. Versatile and adaptable, timeless yet modern, AXOR Citterio is an ideal complement to virtually any bathroom décor.

•consists of: single lever basin mixer, waste set
•ComfortZone 100
•projection 128 mm
•spray type: normal spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic cartridge
•temperature limitation adjustable
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•pop-up waste set G 1¼

Art. no. 39010330

AXOR One. A bathroom collection so elegant, elemental and pure, it could be realized only through radical innovation. Whether at the wash basin, bathtub or shower, familiar archetypes have been reinvented for greater clarity, enhanced function and superior control. Powered by advanced Select technology, the mixer establishes a new mode of interaction: Press down on its all-in-one controller to start or stop the water; swivel clockwise to increase the temperature. The action is effortless, intuitive and ultra-precise, and this same inventive design thinking characterizes the entire collection. Timeless by design, and available in Chrome, Matt Black and an array of exclusive AXOR FinishPlus surfaces, AXOR One brings exquisite beauty to any bathroom.

• consists of: Basin mixer, waste set
• ComfortZone 260
• projection 165 mm
• spray type: normal spray
• maximum flow rate at 3 bar: 5 l/min
• Select cartridge with temperature control
• temperature limitation adjustable
• suitable for continuous flow water heaters
• material waste set: metal
• connection type: G ⅜ connections
• connection dimension: DN15
• cold water in middle position
• push-open waste set G 1¼

Art.no. 48030670

AXOR One. A bathroom collection so elegant, elemental and pure, it could be realized only through radical innovation. Whether at the wash basin, bathtub or shower, familiar archetypes have been reinvented for greater clarity, enhanced function and superior control. Powered by advanced Select technology, the mixer establishes a new mode of interaction: Press down on its all-in-one controller to start or stop the water; swivel clockwise to increase the temperature. The action is effortless, intuitive and ultra-precise, and this same inventive design thinking characterizes the entire collection. Timeless by design, and available in Chrome, Matt Black and an array of exclusive AXOR FinishPlus surfaces, AXOR One brings exquisite beauty to any bathroom.

• consists of: overhead shower, hand shower, wall connector, shower hose, hand shower holder, shower bar
• overhead shower Axor One 280 1jet
• shower head size overhead shower: 280 mm
• spray type overhead shower: PowderRain and Rain in combination
• ball-joint: overhead shower angle adjustable
• swivelling shower arm
• shower holder inclination angle can be adjusted continously
• spray type hand shower: PowderRain
• height-adjustable hand shower holder
• requires a mixer for 2 functions
• mounting type: concealed
• connection dimension: DN15
• shower bar diameter: 25 mm

Art.no. 48790670

AXOR One. A bathroom collection so elegant, elemental and pure, it could be realized only through radical innovation. Whether at the wash basin, bathtub or shower, familiar archetypes have been reinvented for greater clarity, enhanced function and superior control. Powered by advanced Select technology, the mixer establishes a new mode of interaction: Press down on its all-in-one controller to start or stop the water; swivel clockwise to increase the temperature. The action is effortless, intuitive and ultra-precise, and this same inventive design thinking characterizes the entire collection. Timeless by design, and available in Chrome, Matt Black and an array of exclusive AXOR FinishPlus surfaces, AXOR One brings exquisite beauty to any bathroom.

• Eco-Function: flow rate regulation via lever handle
• depending on volume flow and installation situation approx. 50% flow rate reduction
• 2 functions and 1 additional outlet
• comfortable turning on / off of consumers with large Select-paddle
• simultaneous use of several outlets
• flow rate per outlet: 24 l/min
• flow rate by simultaneous use of all outlets: 30 l/min
• thermostat cartridge, Start/stop valve to operate the functions
• safety lock at 40° C
• temperature limitation adjustable
• the thermostat offers the possibility for thermal disinfection
• non-return valve
• connection type: basic set
• min. operating pressure: 1 bar
• Thermostat is delivered with buttons hand shower and Rain large

Art.no. 45712670

Familiar yet new. Contemporary yet classic. Dynamic yet understated. AXOR Citterio E affirms the wisdom of the Pythagorean principle, that harmony is to be found in the calm balance of opposites. A sophisticated synthesis of modern and archetypal forms, hard angles and sensuous curves, technological innovation and time-proven techniques of manufacture, the collection is best characterized by the word from which it derives its name. AXOR Citterio E is elegance itself.

• consists of: single lever basin mixer for concealed installation wall-mounted, waste set
• projection 221 mm
• spray type: laminar spray
• maximum flow rate at 3 bar: 5 l/min
• joystick ceramic cartridge
• suitable for continuous flow water heaters
• connection type: basic set
• handle can be positioned on the right or left, depends on the basic set installation
• non-closing waste set

Art. no. 36106310

Familiar yet new. Contemporary yet classic. Dynamic yet understated. AXOR Citterio E affirms the wisdom of the Pythagorean principle, that harmony is to be found in the calm balance of opposites. A sophisticated synthesis of modern and archetypal forms, hard angles and sensuous curves, technological innovation and time-proven techniques of manufacture, the collection is best characterized by the word from which it derives its name. AXOR Citterio E is elegance itself.

• consists of: bath thermostat floor standing, baton hand shower, shower hose, shower holder
• projection 190 mm
• 2 functions
• will not run two outlets at same time
• diversion between outlets via diverter knob
• spray type mixer: laminar spray
• spray type hand shower: Rain, Mono
• maximum flow rate at 3 bar: 19 l/min
• flow rate for bath spout at 3 bar: 19 l/min
• flow rate of hand shower at 3 bar: 15 l/min
• thermostat cartridge, ceramic valve 180°
• safety lock at 40° C
• temperature limitation adjustable
• non-return valve
• with automatic resetting
• connection type: basic set
• connection dimension: DN15

Art. no. 36416310

Familiar yet new. Contemporary yet classic. Dynamic yet understated. AXOR Citterio E affirms the wisdom of the Pythagorean principle, that harmony is to be found in the calm balance of opposites. A sophisticated synthesis of modern and archetypal forms, hard angles and sensuous curves, technological innovation and time-proven techniques of manufacture, the collection is best characterized by the word from which it derives its name. AXOR Citterio E is elegance itself.

• consists of: 3-hole basin mixer, waste set
• ComfortZone 170
• projection 165 mm
• spray type: normal spray
• maximum flow rate at 3 bar: 5 l/min
• ceramic valves hot/ cold 180°
• suitable for continuous flow water heaters
• connection type: G ⅜ connections
• connection dimension: DN15
• pop-up waste set G 1¼

Art. no. 36108310

Familiar yet new. Contemporary yet classic. Dynamic yet understated. AXOR Citterio E affirms the wisdom of the Pythagorean principle, that harmony is to be found in the calm balance of opposites. A sophisticated synthesis of modern and archetypal forms, hard angles and sensuous curves, technological innovation and time-proven techniques of manufacture, the collection is best characterized by the word from which it derives its name. AXOR Citterio E is elegance itself.

• consists of: single lever basin mixer, waste set
• ComfortZone 130
• projection 143 mm
• spray type: laminar spray
• maximum flow rate at 3 bar: 5 l/min
• joystick ceramic cartridge
• suitable for continuous flow water heaters
• connection type: G ⅜ connections
• connection dimension: DN15
• pop-up waste set G 1¼

Art. no. 36100310

Familiar yet new. Contemporary yet classic. Dynamic yet understated. AXOR Citterio E affirms the wisdom of the Pythagorean principle, that harmony is to be found in the calm balance of opposites. A sophisticated synthesis of modern and archetypal forms, hard angles and sensuous curves, technological innovation and time-proven techniques of manufacture, the collection is best characterized by the word from which it derives its name. AXOR Citterio E is elegance itself.

• consists of: single lever basin mixer, waste set
• ComfortZone 130
• projection 143 mm
• spray type: laminar spray
• maximum flow rate at 3 bar: 5 l/min
• joystick ceramic cartridge
• suitable for continuous flow water heaters
• connection type: G ⅜ connections
• connection dimension: DN15
• non-closing waste set

Art. no. 36101330

An icon of modern bathroom design. Understated yet unmistakably luxurious, with distinctive flat surfaces that brilliantly reflect the light, AXOR Citterio celebrates the preciousness of water itself. With balanced proportions and elegant geometries, the collection suits any bathroom ambience. It comprises an extensive range of products, including faucets in a variety of handle styles.

• consists of: single lever basin mixer, waste set
• ComfortZone 160
• projection 143 mm
• spray type: laminar spray
• swiveling spray former
• maximum flow rate at 3 bar: 5 l/min
• ceramic cartridge
• suitable for continuous flow water heaters
• connection type: G ⅜ connections
• connection dimension: DN15
• pop-up waste set G 1¼

Art. no. 39071310

A bathroom collection inspired by the early Modernist aesthetic of Purism, AXOR Uno brings radical simplicity to fixtures for the wash basin, bath and shower. Clean lines, classical geometry and undisguised construction meet precision engineering, innovative technology and options for customization that Le Corbusier and the Bauhaus could only have dreamed of. The result? A contemporary collection with universal appeal. If less is more, AXOR Uno is most.

•consists of: Basin mixer, waste set
•ComfortZone 200
•projection 198 mm
•spray type: laminar spray
•maximum flow rate at 3 bar: 5 l/min
•Select cartridge with temperature control
•temperature limitation adjustable
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•non-closing waste set

Art. no. 45013820

A bathroom collection inspired by the early Modernist aesthetic of Purism, AXOR Uno brings radical simplicity to fixtures for the wash basin, bath and shower. Clean lines, classical geometry and undisguised construction meet precision engineering, innovative technology and options for customization that Le Corbusier and the Bauhaus could only have dreamed of. The result? A contemporary collection with universal appeal. If less is more, AXOR Uno is most.

•projection 260 mm
•spray type: laminar spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic cartridge
•temperature limitation adjustable
•suitable for continuous flow water heaters
•connection type: basic set
•connection dimension: DN15

Art. no. 45037820

A bathroom collection inspired by the early Modernist aesthetic of Purism, AXOR Uno brings radical simplicity to fixtures for the wash basin, bath and shower. Clean lines, classical geometry and undisguised construction meet precision engineering, innovative technology and options for customization that Le Corbusier and the Bauhaus could only have dreamed of. The result? A contemporary collection with universal appeal. If less is more, AXOR Uno is most.

•consists of: 3-hole basin mixer, waste set
•ComfortZone 200
•projection 183 mm
•swivel range 110°
•spray type: laminar spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic valves hot/ cold 90°
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•pop-up waste set G 1¼

Art. no. 45133820

A bathroom collection inspired by the early Modernist aesthetic of Purism, AXOR Uno brings radical simplicity to fixtures for the wash basin, bath and shower. Clean lines, classical geometry and undisguised construction meet precision engineering, innovative technology and options for customization that Le Corbusier and the Bauhaus could only have dreamed of. The result? A contemporary collection with universal appeal. If less is more, AXOR Uno is most.

•consists of: single lever basin mixer, waste set
•ComfortZone 110
•projection 123 mm
•spray type: laminar spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic cartridge
•temperature limitation adjustable
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•non-closing waste set

Art. no. 45002820

A bathroom collection inspired by the early Modernist aesthetic of Purism, AXOR Uno brings radical simplicity to fixtures for the wash basin, bath and shower. Clean lines, classical geometry and undisguised construction meet precision engineering, innovative technology and options for customization that Le Corbusier and the Bauhaus could only have dreamed of. The result? A contemporary collection with universal appeal. If less is more, AXOR Uno is most.

•consists of: basin mixer for concealed installation wall-mounted, waste set
•projection 158 mm
•spray type: normal spray
•maximum flow rate at 3 bar: 5 l/min
•Start/stop valve to operate the functions
•separation of temperature control and open/close
•suitable for continuous flow water heaters
•connection type: basic set
•connection dimension: DN15
•handle can be positioned on the right or left, depends on the basic set installation
•non-closing waste set

Art. no. 45112820

Flawless design. Intuitive function. Unrivaled innovation. All contribute to a shower experience like no other. The AXOR shower experience. In styles that harmonize with every decor, the AXOR shower range comprises overhead showers, side showers, hand showers, modular shower systems, shower pipes, thermostatic mixers and state-of-the-art control units with Select technology. AXOR Showers are available in Chrome and up to 15 exclusive AXOR FinishPlus colors and surfaces.

•consists of: overhead shower, baton hand shower, shower thermostat, shower hose, shower holder, shower bar
•overhead shower AXOR overhead shower 350 1jet
•shower head size overhead shower: 350 mm
•spray type overhead shower: PowderRain
•90° position adjustable hand shower holder, pivots left and right, up and down
•spray type hand shower: Rain, Mono
•shelf made of safety glass
•shelf finish: chrome
•flow rate PowderRain spray (at 3 bar): 19,5 l/min
•minimum flow pressure: 1 bar
•shower bar diameter: 25 mm
•shower arm length overhead shower: 400 mm
•swivel shower arm
•thermostat AXOR thermostatic mixer 800
•safety lock at 40° C
•adjustable hot water limitation
•convenient diversion via Select button
•simultaneous utilization of 2 functions
•mounting type: exposed installation
•connection dimension DN15
•connection thread G ½
•centre distance 150 ± 12 mm

Art. no. 27984990

Flawless design. Intuitive function. Unrivaled innovation. All contribute to a shower experience like no other. The AXOR shower experience. In styles that harmonize with every decor, the AXOR shower range comprises overhead showers, side showers, hand showers, modular shower systems, shower pipes, thermostatic mixers and state-of-the-art control units with Select technology. AXOR Showers are available in Chrome and up to 15 exclusive AXOR FinishPlus colors and surfaces.

•consists of: overhead shower, shower arm
•shower head size: 300 mm
•spray type: PowderRain, Intense PowderRain
•dynamic spray nozzles move out while using
•material spray disc: metal
•shower arm length 450 mm
•maximum flow rate at 3 bar: 19 l/min
•flow rate PowderRain spray (at 3 bar): 19 l/min
•flow rate Intense PowderRain (at 3 bar): 16 l/min
•minimum flow pressure: 2 bar
•overhead shower removable for cleaning
•ServiceCard with sieve can be removed without tools for cleaning porpose
•installation: wall
•connection thread G ½
•connection dimension: DN15

Art. no. 35303250

Flawless design. Intuitive function. Unrivaled innovation. All contribute to a shower experience like no other. The AXOR shower experience. In styles that harmonize with every decor, the AXOR shower range comprises overhead showers, side showers, hand showers, modular shower systems, shower pipes, thermostatic mixers and state-of-the-art control units with Select technology. AXOR Showers are available in Chrome and up to 15 exclusive AXOR FinishPlus colors and surfaces.

•consists of: hand shower, shower bar, shower hose, slider
•shower head size: 120 mm
•spray type: Rain, RainAir, WhirlAir
•convenient diversion via Select button
•maximum flow rate at 3 bar: 15 l/min
•minimum flow pressure: 1 bar
•pivot connector prevent hose from tangling
•wall supports of metal
•30 mm width of shower bar

Art. no. 36735250

Flawless design. Intuitive function. Unrivaled innovation. All contribute to a shower experience like no other. The AXOR shower experience. In styles that harmonize with every decor, the AXOR shower range comprises overhead showers, side showers, hand showers, modular shower systems, shower pipes, thermostatic mixers and state-of-the-art control units with Select technology. AXOR Showers are available in Chrome and up to 15 exclusive AXOR FinishPlus colors and surfaces.

•consists of: shower thermostat, shut-off/ diverter valve, shut-off valve
•3 functions
•simultaneous utilization of 2 functions
•maximum flow rate at 3 bar: 42 l/min
•flow rate lower outlet: 37,9 l/min
•Flow rate left and right: 37,9 l/min
•thermostat cartridge
•safety lock at 40° C
•temperature limitation adjustable
•combination of highflow thermostat with shut-off valve and Quattro diverter valve for controlling 3 consumers
•connection type: basic set
•connection dimension: DN20

Art. no. 36704250

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: metal
•concealed fastening
•wall-mounted
•drilling distance 35 mm
•diameter drill hole: 6 mm
•with mounting material

Art. no. 42801990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: metal
•length 894 mm
•concealed fastening
•use as a rail for accessories and bath towel holder
•drilling distance 800 mm
•wall-mounted
•material holder: metal
•diameter drill hole: 6 mm
•with mounting material

Art. no. 42833990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: glass
•material holder: metal
•concealed fastening
•drilling distance 108 mm
•wall-mounted
•adapter set no.42870XXX must be used when installing on a rail
•with mounting material
•diameter drill hole: 6 mm

Art. no. 42834990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: glass, metal
•material holder: metal
•drilling distance 108 mm
•wall-mounted
•adapter set no.42870XXX must be used when installing on a rail
•suitable for shower
•with drain holes
•with mounting material
•diameter drill hole: 6 mm

Art. no. 42802000

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: metal
•shelf made of safety glass
•material holder: metal
•length 300 mm
•drilling distance 258 mm
•wall-mounted
•two adapter sets no.42870XXX must be used when installing on a rail (for asymmetric installation only one adapter set)
•combinable with roll holder no.42836XXX (adapter no.42870XXX necessary)
•suitable for shower
•with mounting material
•diameter drill hole: 6 mm

Art. no. 42838990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: metal
•length 694 mm
•concealed fastening
•use as a rail for accessories and bath towel holder
•drilling distance 600 mm
•wall-mounted
•material holder: metal
•diameter drill hole: 6 mm
•with mounting material

Art. no. 42832990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•drilling distance 108 mm
•material recess: ceramic
•diameter drill hole: 6 mm
•material: metal
•wall-mounted
•adapter set no.42870XXX must be used when installing on a rail
•combinable with roll holder no.42836XXX (adapter no.42870XXX necessary)
•concealed fastening
•with mounting material

Art. no. 42803990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•diameter drill hole: 6 mm
•material: metal
•length 374 mm
•drilling distance 280 mm
•wall-mounted
•across or upright mountable
•material holder: metal
•TÜV certified
•use as a rail for accessoiries and grab bar
•concealed fastening
•with mounting material

Art. no. 42830990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: metal
•length 409 mm
•concealed fastening
•drilling distance 80 mm
•wall-mounted
•material holder: metal
•swivelling
•diameter drill hole: 6 mm
•with mounting material

Art. no. 42821990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: metal
•wall-mounted
•mirror-inverted installation possible
•combinable with soap dish / shelf no.42803XXX and shelf 300 mm no.42838XXX (adapter set no.42870XXX •necessary)
•concealed fastening
•drilling distance 35 mm
•with mounting material
•diameter drill hole: 6 mm

Art. no. 42836990

Designed in collaboration with Barber Osgerby, the AXOR Universal Circular Accessories program reflects the AXOR passion for highly functional, expertly crafted design objects in the bathroom. Compatible with a wide range of AXOR faucets and shower products, the program helps to ensure a design language throughout the bathroom. Accessories include a wall mirror, a shaving mirror, towel hooks, single and double towel holders, a towel rack, a tissue box, paper roll holders, toilet brush holders, a waste bin and a shower shelf. All accessories come in Chrome or lacquered Matt Black as standard and are available in up to 15 exclusive AXOR FinishPlus surfaces.

•material: metal
•material recess: matt glass
•accent colour: white
•square design
•with removable insert
•concealed fastening
•drilling distance 108 mm
•wall-mounted

Art. no. 42835990

The AXOR Citterio kitchen mixer combines astonishing beauty with exceptional ease of use. The precise angles of the operating lever offers sensuous, ergonomic comfort. The pull-out spray features dual jet-modes for strong cleaning and gentle washing. The towering Semi-Pro variant with all-round swivel-range is perfect for double-sink units and the modern cooking island.

•ComfortZone 250
•swivel range adjustable in 2 steps to 110° or 150°
•normal spray, shower spray
•lockable shower spray, spray returns through pressing spray diverter
•MagFit magnetic shower support
•quick connect hose
•connection dimension: DN15
•maximum flow rate at 3 bar: 9 l/min
•ceramic cartridge
•connection type: G ⅜ connections
•temperature limitation adjustable
•integrated non-return valve
•suitable for continuous flow water heaters

Art. no. 39835000

The AXOR Citterio kitchen mixer combines astonishing beauty with exceptional ease of use. The precise angles of the operating lever offers sensuous, ergonomic comfort. The pull-out spray features dual jet-modes for strong cleaning and gentle washing. The towering Semi-Pro variant with all-round swivel-range is perfect for double-sink units and the modern cooking island.

•ComfortZone 230
•swivel range 360°
•normal and spray jet
•lockable shower spray, spray returns through pressing spray diverter
•connection dimension: DN15
•maximum flow rate at 3 bar: 9 l/min
•ceramic cartridge
•connection type: G ⅜ connections
•temperature limitation adjustable
•integrated non-return valve
•suitable for continuous flow water heaters

Art. no. 39840800

The dignified grandeur of the Belle Époque spa. Well-being as a way of life. AXOR Montreux draws from this source, with design details that include slip-fit pipes and porcelain inlays. The mixer features an optional pull-out spray with dual settings. The Semi-Pro variant boasts a signature stainless steel coil and all-round swivel range.

•ComfortZone 210
•swivel range 360°
•normal spray, shower spray
•lockable shower spray, spray returns through pressing spray diverter
•connection dimension: DN15
•maximum flow rate at 3 bar: 11 l/min
•ceramic cartridge
•connection type: G ⅜ connections
•temperature limitation adjustable
•integrated non-return valve
•suitable for continuous flow water heaters

Art. no. 16582000

AXOR kitchen mixers combine striking beauty with intuitive technology, masterful design with precision engineering. Ensuring effortless ease of operation for all who appreciate the art of cooking, from amateur gastronomes to professional chefs de cuisine, they can also inspire culinary evolution. Opening new aesthetic vistas in the kitchen, the mixers are offered in up to fifteen AXOR FinishPlus surfaces, from Stainless Steel-Optic to Polished Black Chrome, Brushed Nickel to Polished Red Gold.

•consists of: single lever basin mixer, waste set
•ComfortZone 190
•projection 175 mm
•spray type: normal spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic cartridge
•temperature limitation adjustable
•suitable for continuous flow water heaters
•material waste set: metal
•connection type: G ⅜ connections
•connection dimension: DN15
•push-open waste set G 1¼

Art. no. 46021990

AXOR Starck V encapsulates the wonder of water in motion. The mixer body has been specially designed to sculpt water into a swirling vortex. Transparent yet visible, constant yet ever-changing, the vortex spins and dances. As water pours down the open spout, into waiting hands, one has the sense of experiencing a miracle. With a flow of just four liters per minute, it is a sustainable miracle. And with AXOR Starck V at the wash basin, it is a miracle to enjoyed again and again, every day.

•consists of: single lever basin mixer, waste set
•ComfortZone 140
•projection 125 mm
•swivel range adjustable in 3 steps 95°, 120° or 360°
•spray type: laminar spray
•EasyClick connection between body and spout with SafetyStop-function
•Spout is dishwasher safe
•material spout: crystal glass
•maximum flow rate at 3 bar: 4 l/min
•joystick ceramic cartridge
•connection type: G ⅜ connections
•connection dimension: DN15
•handle can be positioned on the right or left
•non-closing waste set
•handle position on the side: bottom-side at the base body (not suitable for wash bowls)

Art. no. 12112330

Sensuous, flowing design that sets new standards of water and energy conservation, AXOR Starck Organic is radically inspired by nature both in function and in form. Whether at the wash basin, bathtub or shower, the collection’s mixers use 50% less water than standard faucets without compromising the everyday experience of washing. Profound in concept and construct, designed to conserve resources even in its manufacture, AXOR Starck Organic is a groundbreaking homage to the greatest minimalist of all: Nature itself.

•consists of: 2-handle basin mixer, waste set
•ComfortZone 80
•projection 116 mm
•spray type: shower spray
•maximum flow rate at 3 bar: 3,5 l/min, 3,5 l/min
•flow rate booster: 5 l/min
•ceramic cartridge for temperature control
•ceramic valve for volume control
•temperature limitation adjustable
•separation of temperature and volume control
•with isolated water conduction - without contact with nickel and lead
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•non-closing waste set

Art. no. 12011330

An icon of modern bathroom design. Understated yet unmistakably luxurious, with distinctive flat surfaces that brilliantly reflect the light, AXOR Citterio celebrates the preciousness of water itself. With balanced proportions and elegant geometries, the collection suits any bathroom ambience. It comprises an extensive range of products, including faucets in a variety of handle styles.

•consists of: single lever basin mixer, waste set
•ComfortZone 110
•projection 104 mm
•spray type: normal spray
•maximum flow rate at 3 bar: 5 l/min, 5 l/min
•joystick ceramic cartridge
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•pop-up waste set G 1¼

Art. no. 39010330

Each AXOR Edge mixer is a sculptural composition of rectangular prisms, milled and polished using state-of-the-art diamond-cutting technology. At the wash basin, the collection includes a wall-mounted mixer, a three-hole mixer and a single-lever mixer, cantilevered and asymmetrical, in four heights. With an exclusive AXOR FinishPlus surface, such as the Polished Black Chrome shown here, AXOR Edge becomes an ever more personal reflection of its owner.

•consists of: single lever basin mixer, waste set
•ComfortZone 190
•projection 175 mm
•spray type: normal spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic cartridge
•temperature limitation adjustable
•suitable for continuous flow water heaters
•material waste set: metal
•connection type: G ⅜ connections
•connection dimension: DN15
•push-open waste set G 1¼

Art. no. 46021330

A bathroom collection inspired by the early Modernist aesthetic of Purism, AXOR Uno brings radical simplicity to fixtures for the wash basin, bath and shower. Clean lines, classical geometry and undisguised construction meet precision engineering, innovative technology and options for customization that Le Corbusier and the Bauhaus could only have dreamed of. The result? A contemporary collection with universal appeal. If less is more, AXOR Uno is most.

•consists of: single lever basin mixer, waste set
•ComfortZone 110
•projection 123 mm
•spray type: laminar spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic cartridge
•temperature limitation adjustable
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•pop-up waste set G 1¼

Art. no. 45001330

On the outside, Belle Époque style. On the inside, state-of-the-art functionality. AXOR conducted extensive research into early 20th-century industrial design to develop AXOR Montreux. Inspired by the luxurious fixtures of Europe’s grand hotels, this sophisticated collection is as authentic in its detail, including slip-fit pipes and porcelain inlays, as it is contemporary in its manufacture. Ideal for traditional bathrooms, the collection can also provide a sophisticated contrast in modern, minimalist spaces.

•consists of: single lever basin mixer, waste set
•ComfortZone 100
•projection 142 mm
•spray type: normal spray
•maximum flow rate at 3 bar: 5 l/min
•ceramic cartridge
•temperature limitation adjustable
•suitable for continuous flow water heaters
•connection type: G ⅜ connections
•connection dimension: DN15
•pop-up waste set G 1¼

Art. no. 16515330

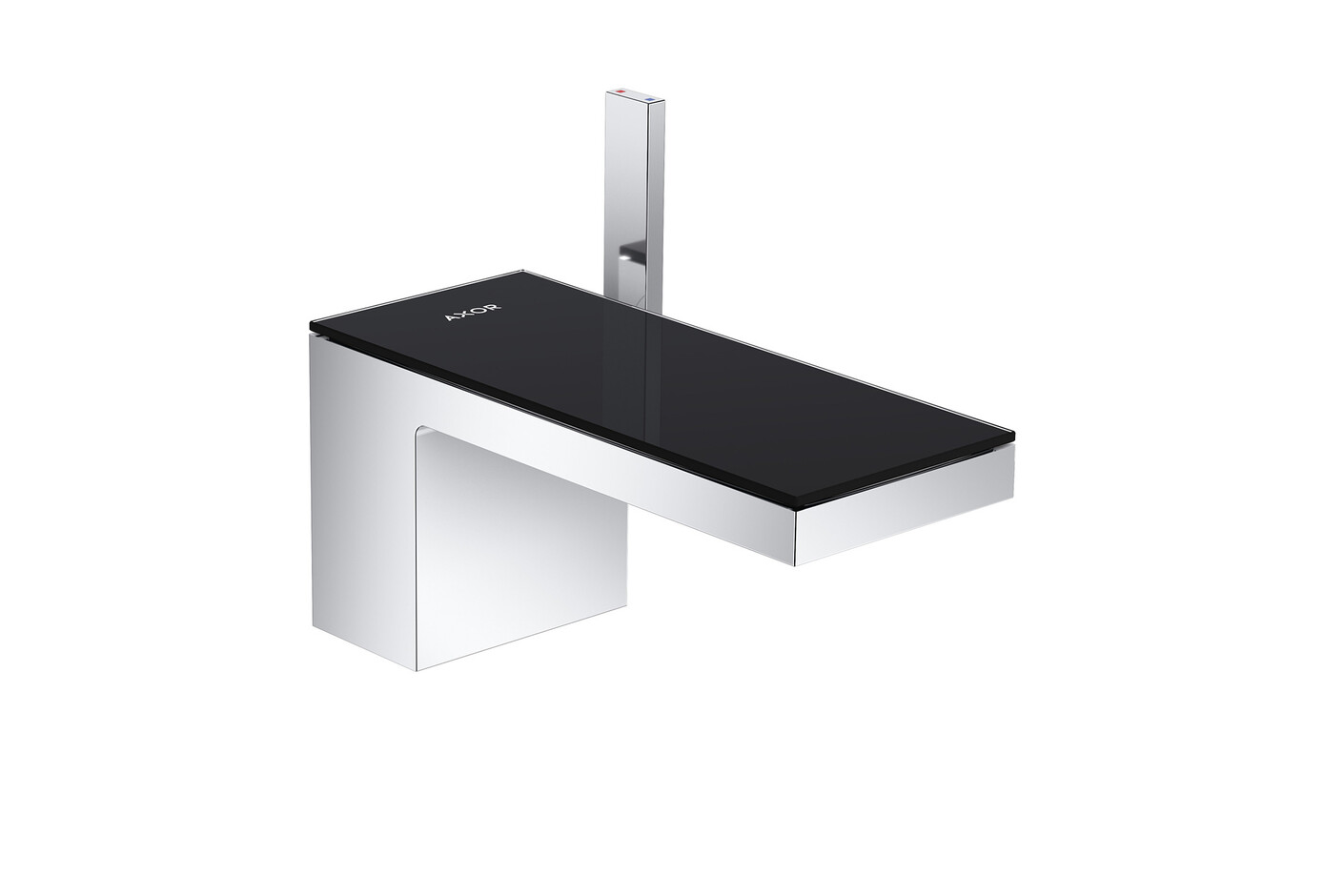

· consists of: single lever basin mixer, waste set

· ComfortZone 70

· projection 151 mm

· plate of glass made of safety glass

· spray type: PowderRain

· flow rate at 3 bar: 5 l/min

· ceramic cartridge

· temperature limitation adjustable

· with isolated water conduction

· suitable for continuous flow water heaters

· push-open waste set G 1¼

· connection dimension: DN15

Formal, Simple Design Language and the Aesthetics of Construction
AXOR Uno pursues the uncompromising design principles of the original Purist movement with consistent construction: two precisely shaped cylinders joined together at a right angle. The spouts and handles are available in radical or gently rounded versions. The precise contours and the raised proportions in the golden ratio of the taps are their defining stylistic features, lending them a special aura and giving them a sleek and elegant look in any setting. Special surface finishes impart added radiance to the collection, which comprises over 70 products for washbasins, showers and bathtubs.

Purist Functional Design
Radical and modern Purism – both stylistic directions emphasise simplicity of function. Operation of the AXOR Uno taps has been reduced to the essential: the flow of water is started or stopped by pressing the Select button, by turning the so-called “Zero” handle, or by lifting the ergonomically shaped loop handle.

Formal, Simple Design Language and the Aesthetics of Construction
AXOR Uno pursues the uncompromising design principles of the original Purist movement with consistent construction: two precisely shaped cylinders joined together at a right angle. The spouts and handles are available in radical or gently rounded versions. The precise contours and the raised proportions in the golden ratio of the taps are their defining stylistic features, lending them a special aura and giving them a sleek and elegant look in any setting. Special surface finishes impart added radiance to the collection, which comprises over 70 products for washbasins, showers and bathtubs.

Purist Functional Design
Radical and modern Purism – both stylistic directions emphasise simplicity of function. Operation of the AXOR Uno taps has been reduced to the essential: the flow of water is started or stopped by pressing the Select button, by turning the so-called “Zero” handle, or by lifting the ergonomically shaped loop handle.
