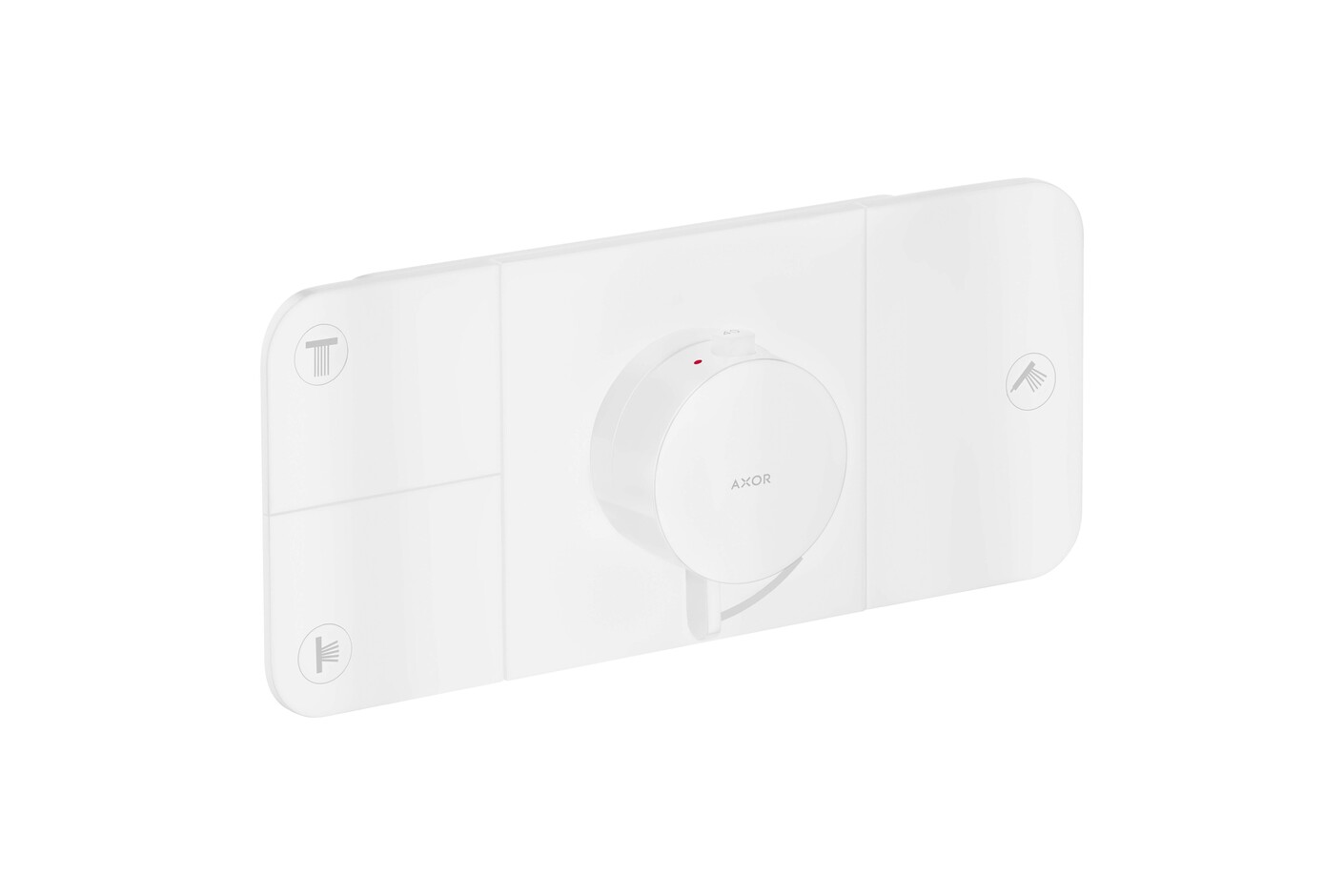

AXOR One Thermostatic module for concealed installation for 3 functions | matt white

Year of design: 2023 | Design: Edward Barber
AXOR One Thermostatic module for concealed installation for 3 functions | matt white

The minimalist, elemental shapes of the highly successful AXOR One collection redefine familiar archetypes and bring timeless design into the bathroom. The new Matt White color underlines this effect and expands the range of AXOR One’s custom surface finishes, while also picking up on one of the most important color trends in design and interior architecture.

Product Attributes 3 functions and 1 additional outlet thermostat cartridge, Start/stop valve to operate the functions Eco-Function: flow rate regulation via lever handle depending on volume flow and installation situation approx. 50% flow rate reduction comfortable turning on / off of consumers with large Select-paddle simultaneous use of several outlets maximum flow rate at 3 bar: 30 l/min flow rate per outlet: 24 l/min flow rate by simultaneous use of all outlets: 30 l/min min. operating pressure: 1 bar max. operating pressure: 5 bar safety stop at 40 °C temperature limitation adjustable the thermostat offers the possibility for thermal disinfection non-return valve Thermostat is delivered with buttons handshower, Rain large and Body spray connection type: basic set
